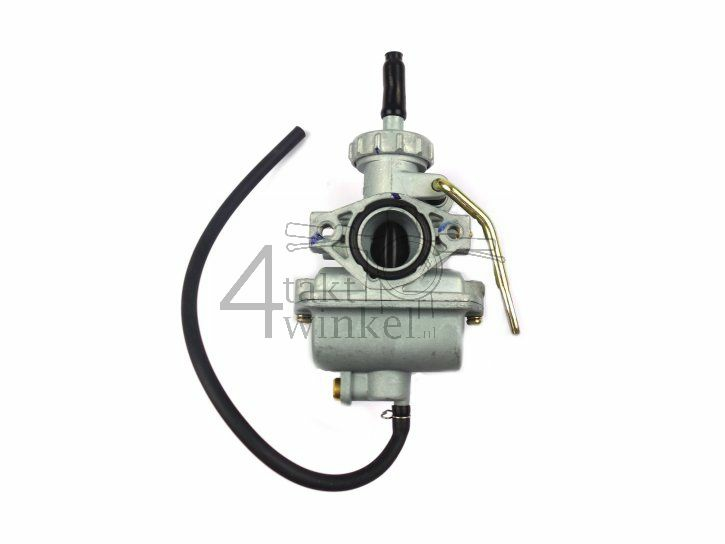

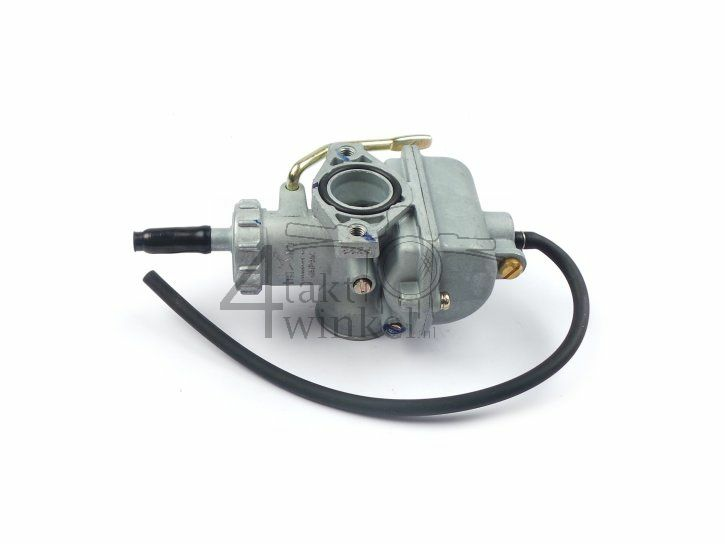

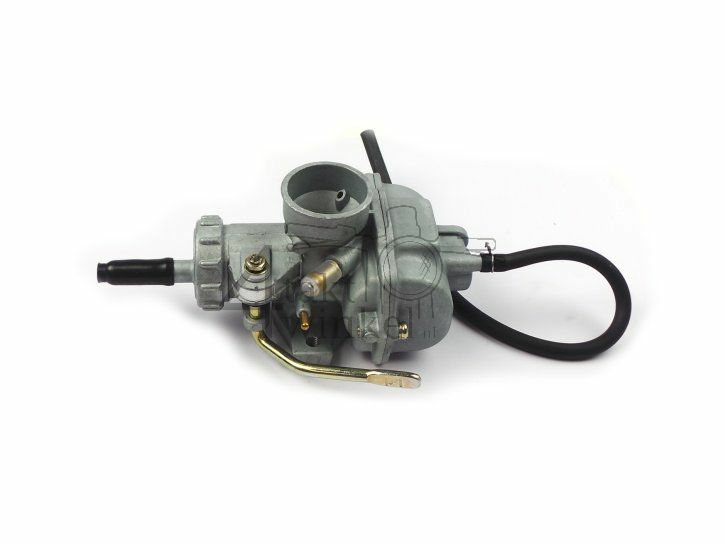

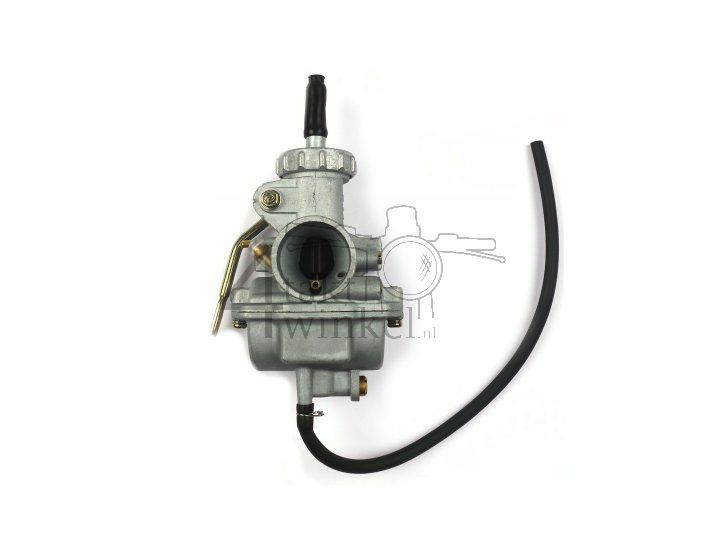

Carburettor, 20mm, wide flange, fits SS50, CB50

Product description

Replica Keihin carburettor.
Suitable for example for:
- SS50 or CD50.
- CB50, XL50, XL75, & CY50, CY80.
Tip for CY50: The choke lever must be slightly bent for a CY50!

With the right manifold it is also very suitable for almost all other models, such as a Dax, Monkey, PBR, Madass, etc.
For advice, please contact us!

Jet type: Keihin M4.
Size air filter connection = 35mm.
Lift height of the throttle slide is 19mm.

Tip: This carburettor works from 50cc, but is better suited when you have 70cc or 85cc for example.
More cylinder capacity also works fine, but larger carburettors are also suitable.

Other tips:
On 50cc usable, but the adjustment is more accurate.
Not a good choice on a limited 50cc, choose a smaller version.
With a fast 50cc setup, this carburettor is very suitable!
